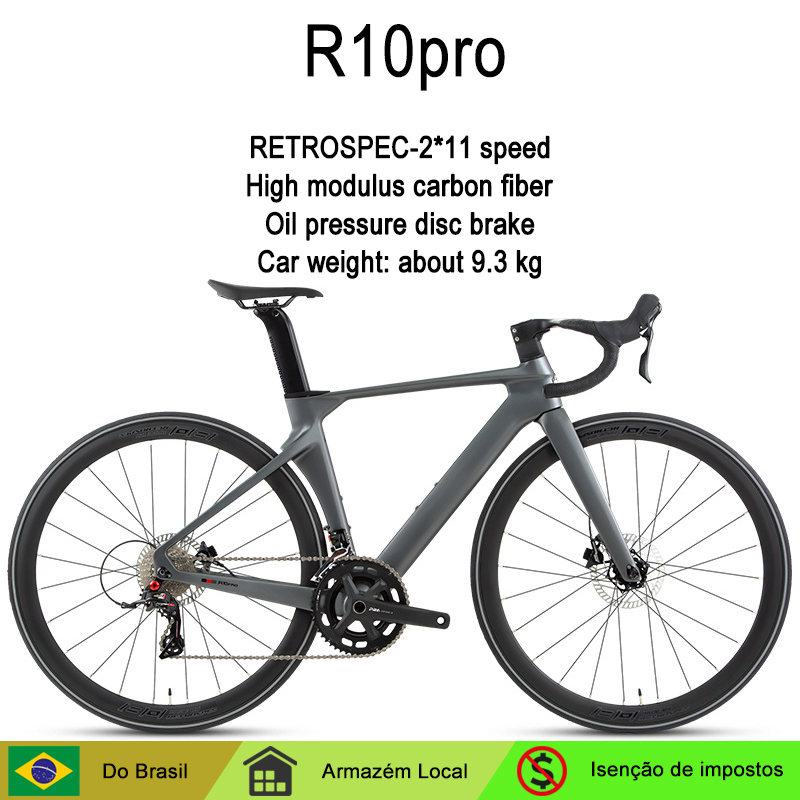

A high-performance carbon fiber road bike designed for speed and endurance. Full carbon fiber frame and fork with aerodynamic tube shaping, paired with RETROSPEC 2×11-speed hydraulic disc groupset for precise shifting and reliable braking.

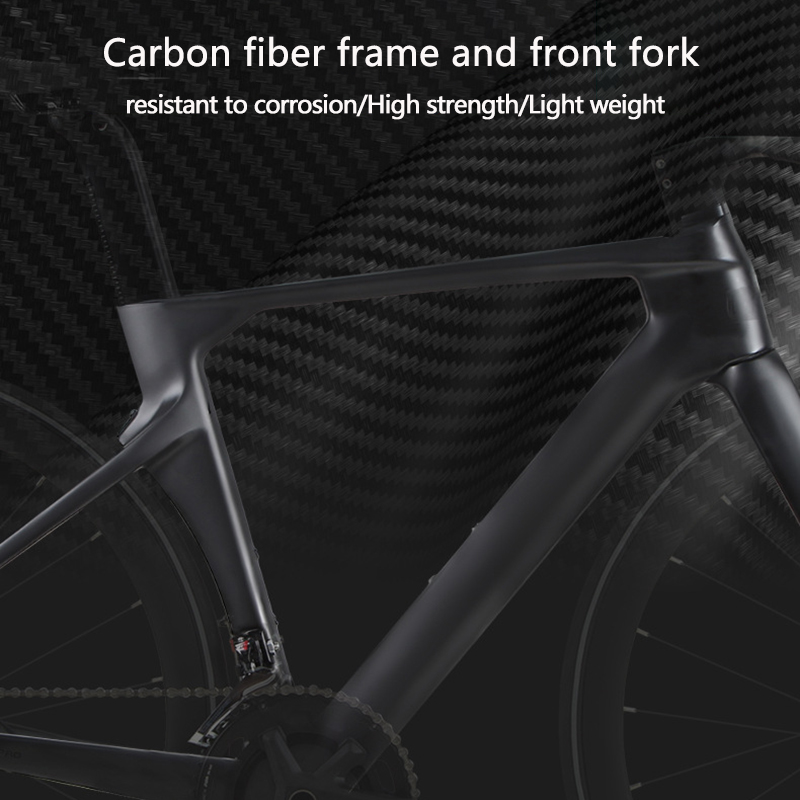

Carbon Fiber Frame
R10 high modulus carbon fiber frame with Aero-Racing tube profiles and full internal cable routing. Thru-axle 12x142mm rear end delivers precise handling and stiffness for power transfer.
Aerodynamic design reduces wind resistance, making it ideal for fast road rides and competitive events.

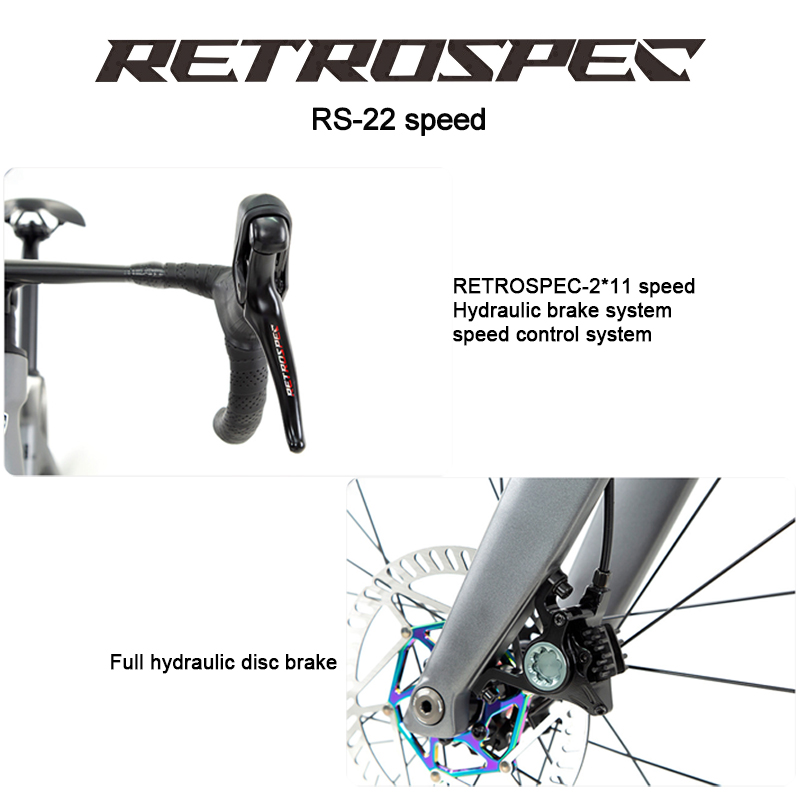

RETROSPEC 22-Speed Groupset

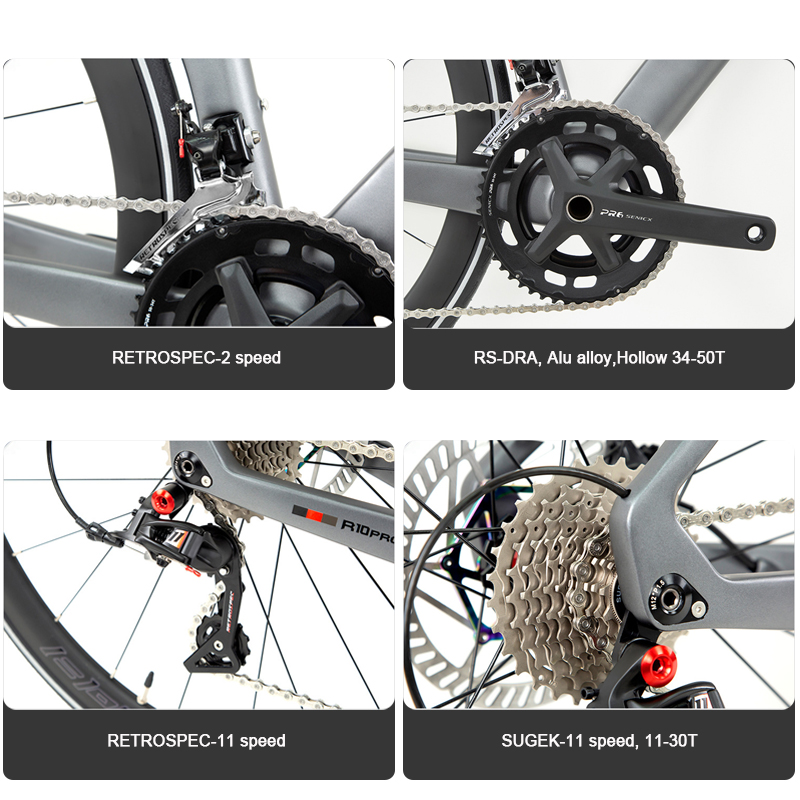

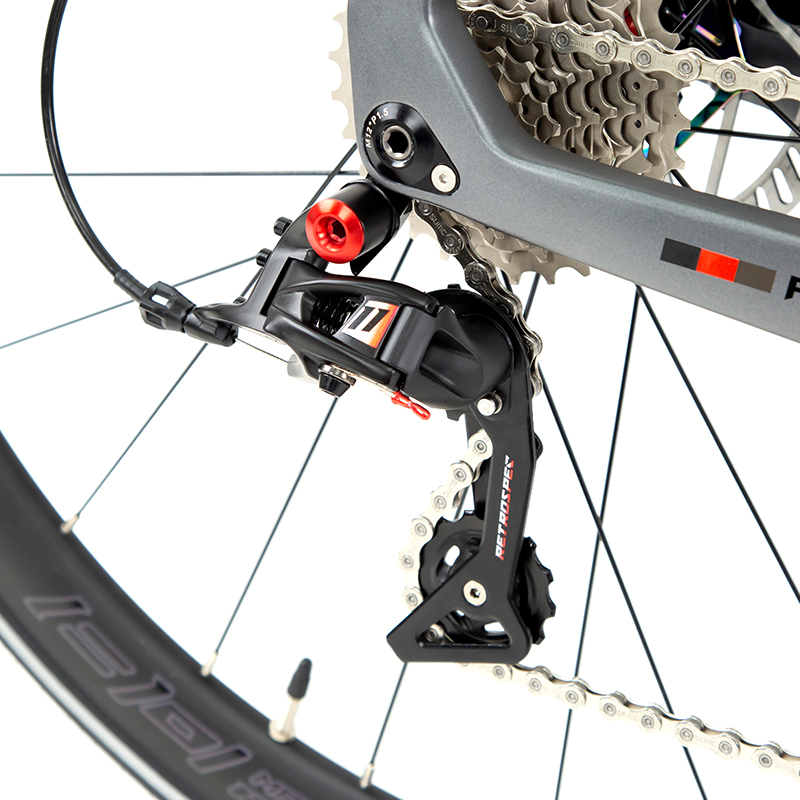

Equipped with RETROSPEC HRD6900-R hydraulic shifting system, 2×11-speed. The Z2 front derailleur and RD8500-GS rear derailleur deliver fast, precise gear changes under all conditions.

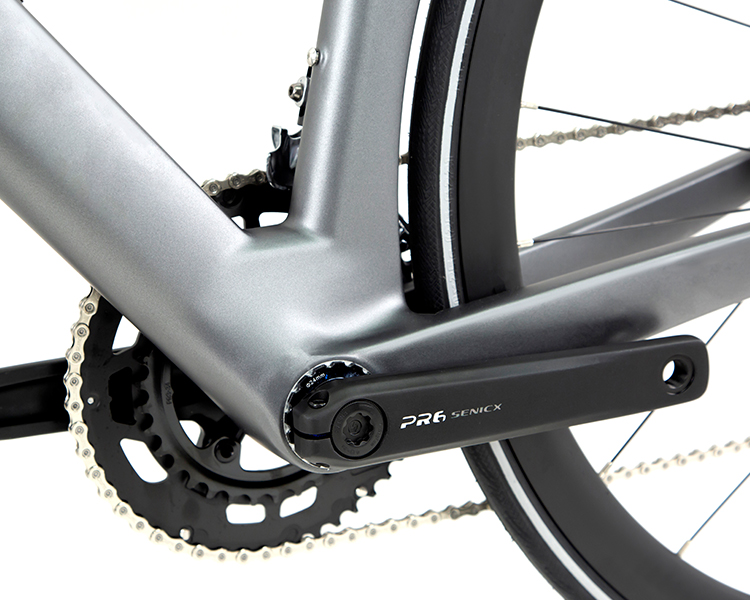

Prowheel-ARP hollow crankset (34-50T) with SUNSHINE 11-30T cassette provides a wide gear range for both climbs and sprints.
Carbon Fork & Headset
R10pro high modulus carbon fiber fork with 12x100mm thru-axle, designed for 700C wheels. The carbon fork effectively absorbs road vibrations while maintaining precise steering.
Aluminum alloy CNC headset with sealed bearings (52x52mm) ensures smooth, long-lasting steering performance.

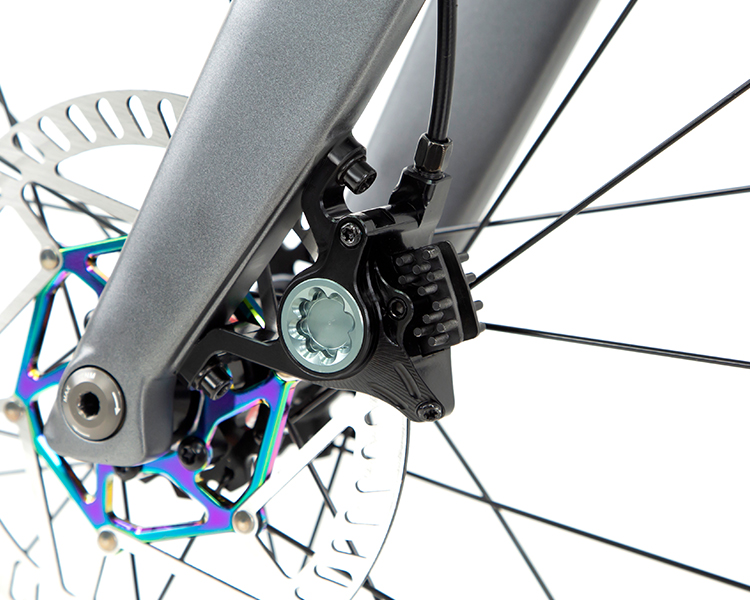

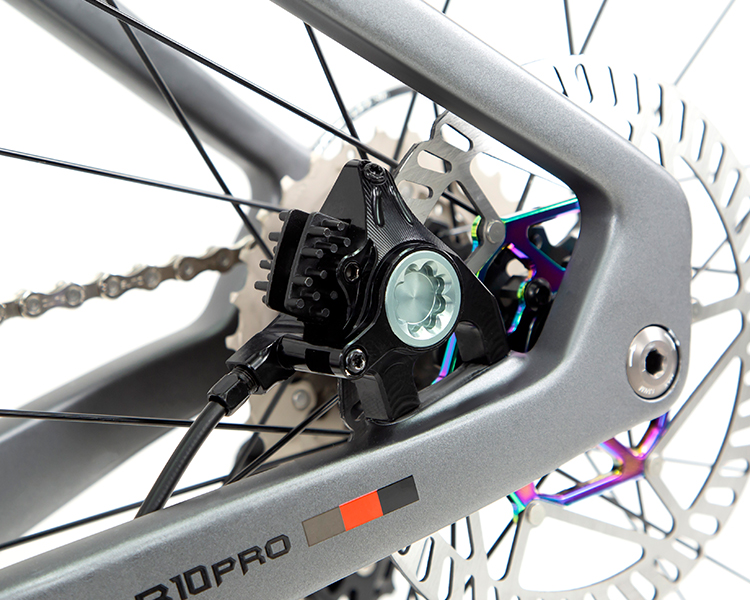

Hydraulic Disc Brakes
RS (SENSAH HRD-G100) hydraulic disc brake system with 160mm rotors front and rear. Consistent, powerful braking performance in all weather conditions.
Hydraulic actuation provides excellent modulation and requires less hand force, reducing fatigue on long rides.
Alloy Disc Wheelset
RS aluminum alloy AL7005 double-wall rims, W21xH38mm profile. Paired with 4 sealed-bearing hubs (F24/R24h) with 12×100/142mm thru-axles for durability and smooth rolling.
RS foldable reflective-edge tires, 700x28C, provide a comfortable ride with good grip and puncture resistance.
Integrated Cockpit

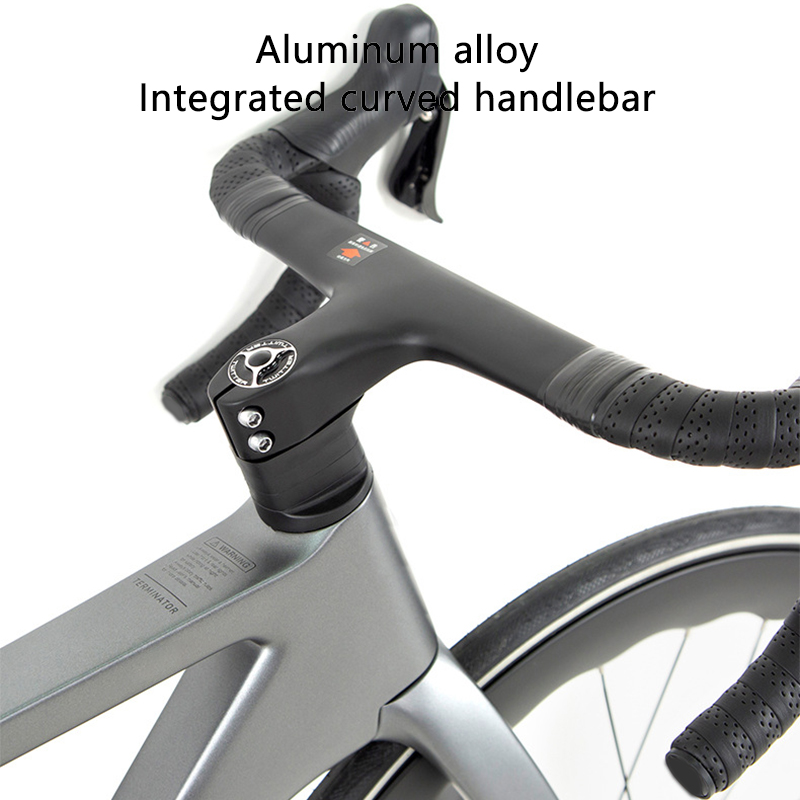

Lightweight aluminum alloy integrated handlebar and stem (400x90mm) with full internal cable routing for a clean, aerodynamic look.
High modulus carbon fiber aero seatpost with hidden clamp design. Comfortable racing saddle and lightweight anti-slip pedals complete the build.

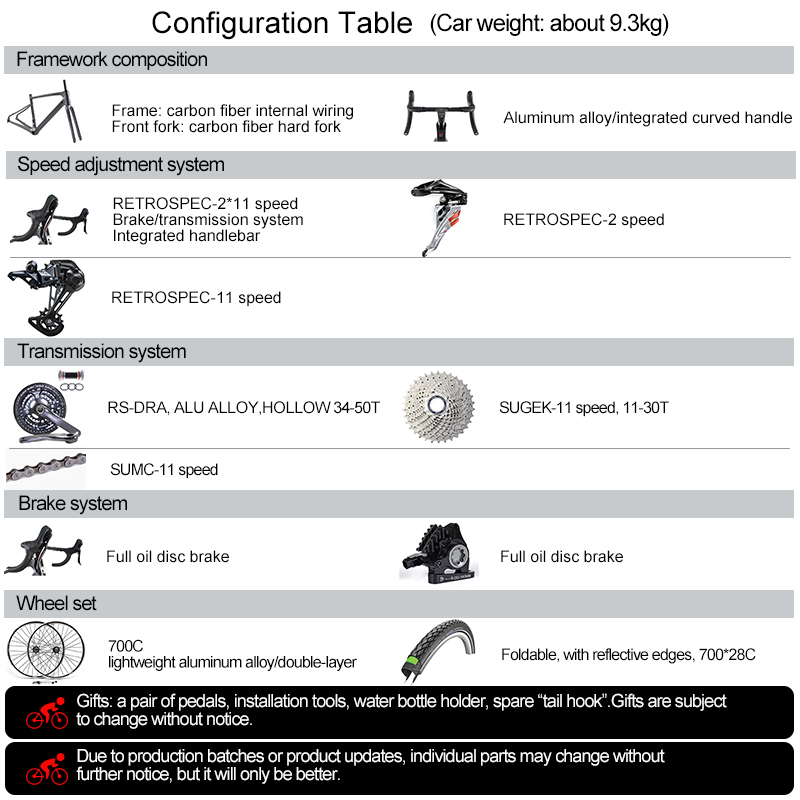

Technical Specifications
| Frame | R10 High Modulus Carbon Fiber, Aero-Racing, Inner-Cables, 12x142mm Thru-Axle |
| Fork | R10pro Carbon Fiber, 700C, 12x100mm Thru-Axle |
| Drivetrain | RETROSPEC HRD6900-R 2×11-Speed Hydraulic |
| Front Derailleur | RETROSPEC Z2 2-Speed |
| Rear Derailleur | RETROSPEC RD8500-GS 11-Speed |
| Crankset | Prowheel-ARP Aluminum Alloy, Hollow 34-50T |

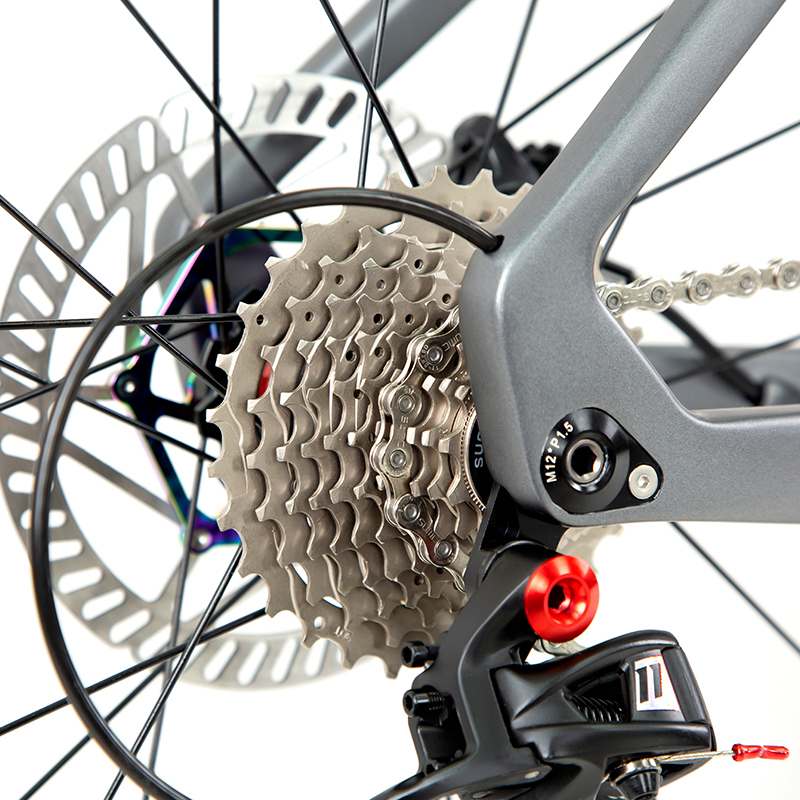

| Cassette | SUNSHINE 11-Speed, 11-30T |

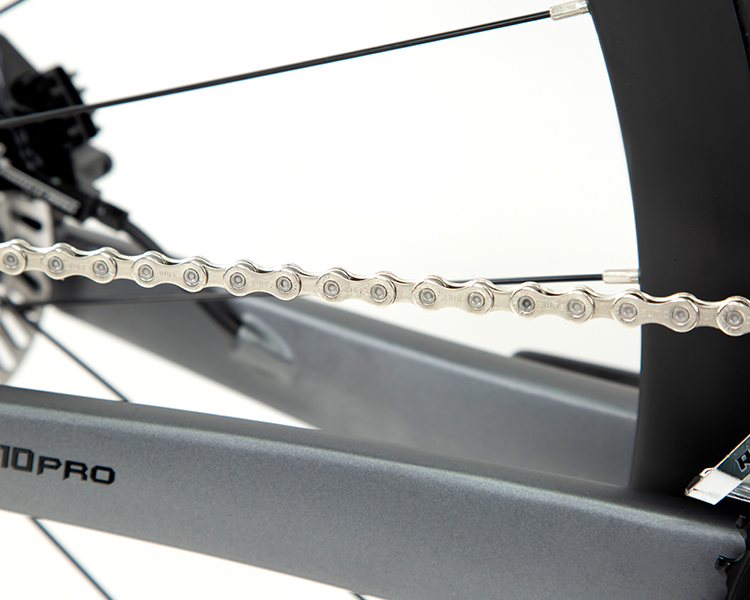

| Chain | SUMC 11-Speed |
| Bottom Bracket | Threaded T47x24mm, Hollow Sealed Bearings |
| Brakes | RS (SENSAH HRD-G100) Hydraulic Disc, 160/160mm |
| Wheels | RS Aluminum Alloy AL7005 Double Wall, W21xH38mm |
| Hubs | RS Aluminum Alloy, 4 Sealed Bearings, 12×100/142mm Thru-Axle |
| Tires | RS Foldable Reflective Edge, 700x28C |
| Handlebar | Aluminum Alloy Integrated Bar&Stem (400x90mm), Full Inner-Cables |
| Seatpost | High Modulus Carbon Fiber, Aero-Racing |
| Weight | 9.3 kg |
